Interface: NTPS School Buses - NTPS Service Center

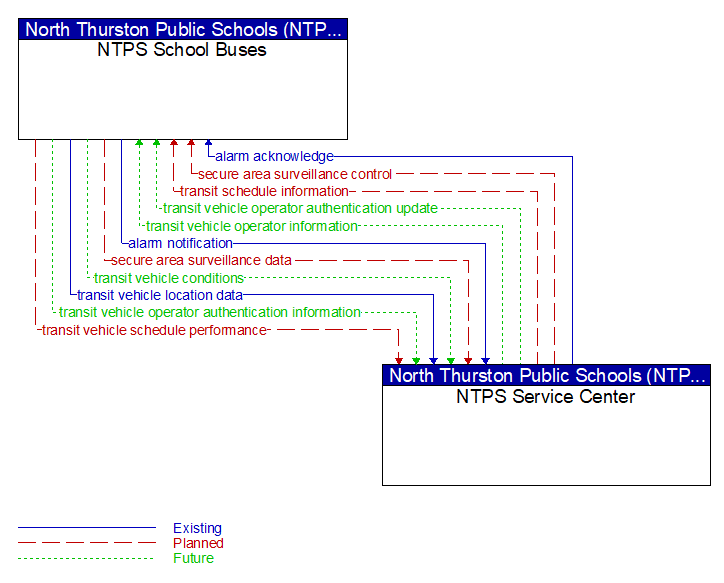

NTPS School Buses to NTPS Service Center Interface Diagram

Architecture Flow Definitions

alarm acknowledge  (Existing)  Applicable ITS Standards

Confirmation that alarm was received, instructions and additional information for the alarm initiator, and requests for additional information.

alarm notification  (Existing)  Applicable ITS Standards

Notification of activation of an audible or silent alarm by a traveler in a public area or by a transit vehicle operator using an on-board device.

secure area surveillance control  (Planned)  Applicable ITS Standards

Information used to configure and control audio and video surveillance systems used for transportation infrastructure security in secure areas. The provided information controls surveillance data collection, aggregation, filtering, and other local processing.

secure area surveillance data  (Planned)  Applicable ITS Standards

Data collected from surveillance systems used to monitor secure areas. Includes video, audio, processed surveillance data, equipment operational status, and alarm indicators when a threat has been detected.

transit schedule information  (Planned)  Applicable ITS Standards

Current and projected transit schedule information used to initialize the transit vehicle with a vehicle assignment, monitor schedule performance, and develop corrective actions on-board.

transit vehicle conditions  (Future)  Applicable ITS Standards

Operating conditions of transit vehicle (e.g., engine running, oil pressure, fuel level and usage).

transit vehicle location data  (Existing)  Applicable ITS Standards

Current transit vehicle location and related operational conditions data provided by a transit vehicle.

transit vehicle operator authentication information  (Future)  Applicable ITS Standards

Information regarding on-board transit operator authentication

transit vehicle operator authentication update  (Future)  Applicable ITS Standards

Results of authentication process or update of on-board authentication database.

transit vehicle operator information  (Future)  Applicable ITS Standards

Transit service instructions, wide area alerts, traffic information, road conditions, and other information for both transit and paratransit operators.

transit vehicle schedule performance  (Planned)  Applicable ITS Standards

Estimated times of arrival and anticipated schedule deviations reported by a transit vehicle.
