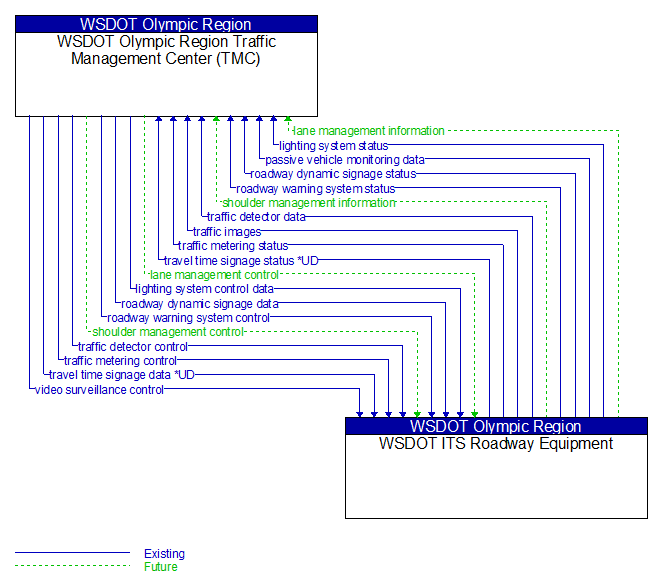

Interface: WSDOT Olympic Region Traffic Management Center (TMC) - WSDOT ITS Roadway Equipment
Architecture Flow Definitions
lane management control (Future) Applicable ITS Standards
Information used to configure and control dynamic lane management systems.
lane management information (Future) Applicable ITS Standards
System status of managed lanes including current operational state, violations, and logged information. This includes lane usage information including both traditional traffic flow measures and special information associated with managed lanes such as measured passenger occupancies. It also includes the operational status of the lane management equipment.
lighting system control data (Existing) Applicable ITS Standards
Information used to configure and control roadside lighting systems.
lighting system status (Existing) Applicable ITS Standards
Status of roadside lighting controls including operating condition and current operational state.
passive vehicle monitoring data (Existing) Applicable ITS Standards
Time stamped identifiers that identify the vehicles that have passed through a detection zone.
roadway dynamic signage data (Existing) Applicable ITS Standards
Information used to initialize, configure, and control roadside systems that provide driver information (e.g., dynamic message signs, highway advisory radio). This flow can provide message content and delivery attributes, local message store maintenance requests, control mode commands, status queries, and all other commands and associated parameters that support remote management of these systems.
roadway dynamic signage status (Existing) Applicable ITS Standards
Current operating status of dynamic message signs, highway advisory radios, or other configurable field equipment that provides dynamic information to the driver.
roadway warning system control (Existing) Applicable ITS Standards
Information used to configure and control roadway warning systems.
roadway warning system status (Existing) Applicable ITS Standards
Current operating status of roadway warning systems.
shoulder management control (Future) Applicable ITS Standards
Information used to configure and control systems that allow use of a shoulder as a lane for vehicular traffic.
shoulder management information (Future) Applicable ITS Standards
System status including current operational state, violations and logged information.
traffic detector control (Existing) Applicable ITS Standards
Information used to configure and control traffic detector systems such as inductive loop detectors and machine vision sensors.
traffic detector data (Existing) Applicable ITS Standards
Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic sensor system.
traffic images (Existing) Applicable ITS Standards
High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and meta data that describes the images.
traffic metering control (Existing) Applicable ITS Standards
Control commands and operating parameters for ramp meters, interchange meters, mainline meters, and other systems equipment associated with roadway metering operations.
traffic metering status (Existing) Applicable ITS Standards
Current operational status and operating parameters for ramp meters, interchange meters, mainline meters and other control equipment associated with roadway metering operations.
travel time signage data *UD (Existing)
travel time signage status *UD (Existing)
video surveillance control (Existing) Applicable ITS Standards
Information used to configure and control video surveillance systems.
